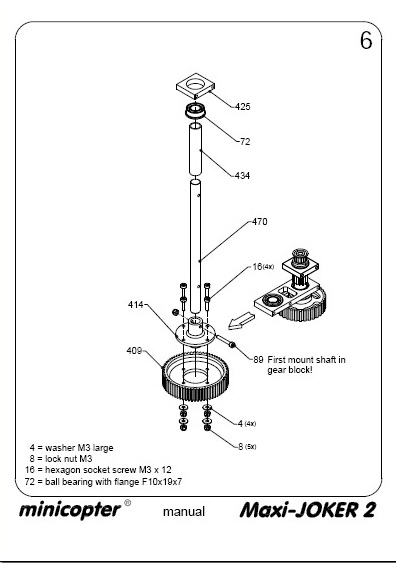

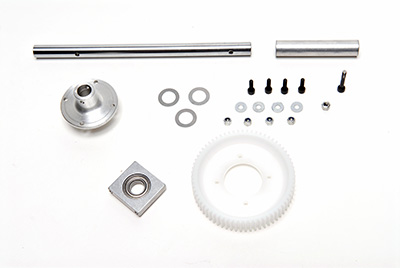

Drawing #6


















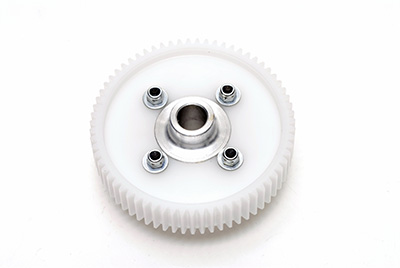

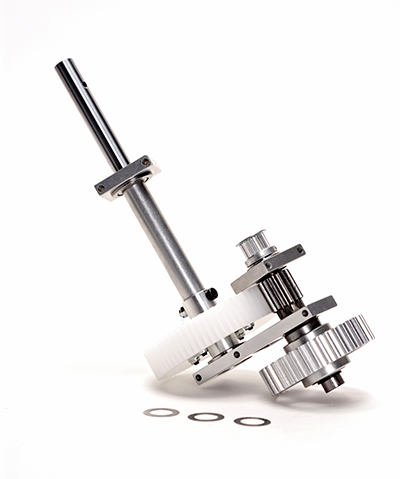

Combine drawing 5 assembly with drawing 6.



Notice part #425's orientation. (bearing on the main shaft).  The raised side faces downwards.







CRASH NOTES

Check bearing #72 for smooth operation.  To remove bearing place it in the oven at 300°F for 20 minutes.  Push out the bearing and replace.



As a habit after a crash I always replace the main shaft.



There is a new thrust bearing for the main shaft, #101, check these as well.  #434 has been replaced.
