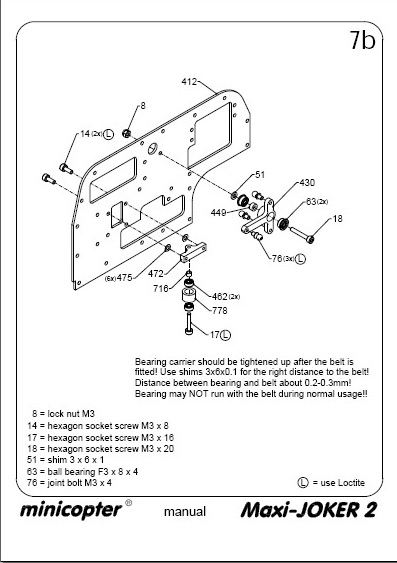

Drawing #7b

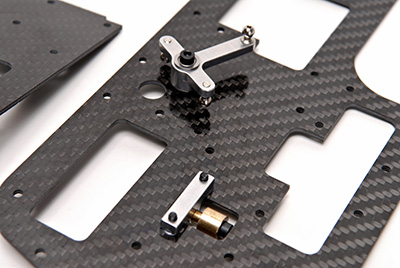

Keep part 472 loose as mentioned in the manual.



This is the tail rotor belt roller carrier.








Assembly TIP!:

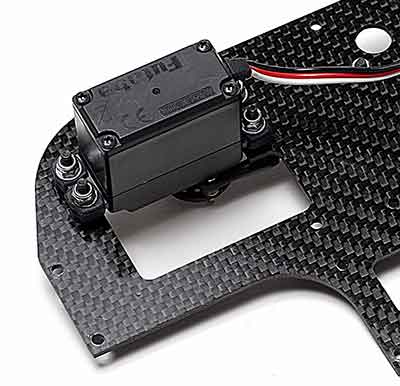

Read ahead to 11b  You can install the aileron servo at this point.  It's easier to install this servo now than later.



(Again, I only realized this after the fact.  This image was taken after enlarging the curve hole)
