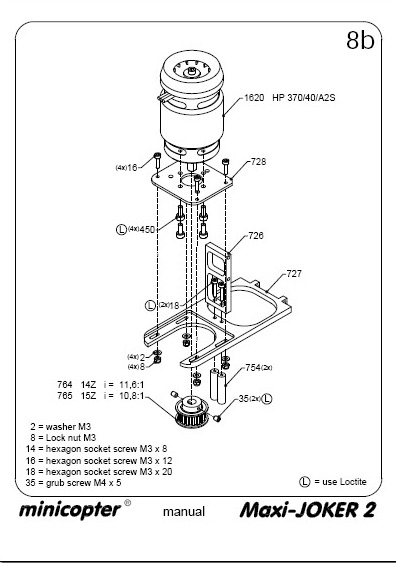

Drawing #8b

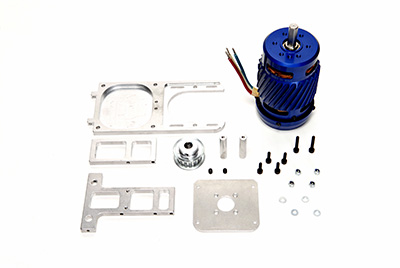

The motor is not part of the kit.  :D

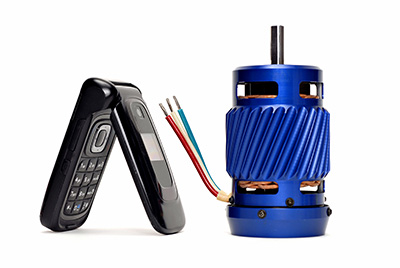

Notice the size of the Plettenberg HP 370/40/A2 Heli.   You will have to cut out a hole in your canopy.



This motor is a work of art.

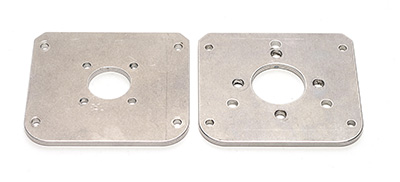

NOTE:  Make sure you ask for the correct motor plate for your motor.  Mine came with the Actro plate (left).  I had to order the Plettenberg plate (right).



NOTE:  Mine did not come with M4 screws.  Got mine from Home Depot (M4 x 8).  Use loctite.

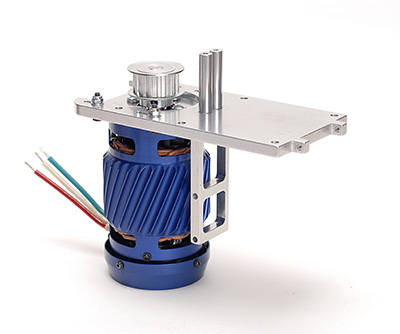

Notice the raised edge around the motor's shaft as I mentioned previously.  This sits perfectly with part 728. (Plettenberg motor plate)



NOTE:  Mine came with a 16T motor pinion.  If you require a lower head speed, a 12T and 13T pinion are available from Minicopter.  PN #762 (12Z) & #763 (13Z).



The 12T, left, and 13T, right, pinions from Minicopter.



NOTE:  I settled down with a 14T pinion.



NOTE:  Do not tighten the motor plate yet.  You will have to adjust this when you install the belt.
