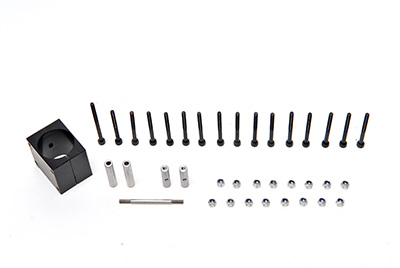

Keep part 426 (block) loose.
You will have to remove this later on to install the
tail boom. |
|
| |
|
|
NOTE: As
mentioned in 7a and 7b, you can install the elevator, aileron
and pitch servos
from drawings 11a - c. It will be much easier at
that stage. Take a peek ahead at your manual. You'll know what I mean. |
|
| |
|
|
 |
|

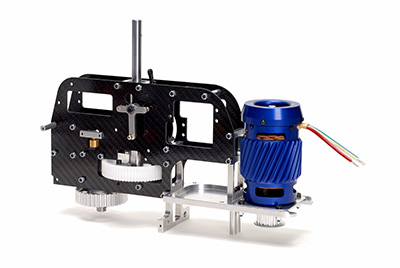

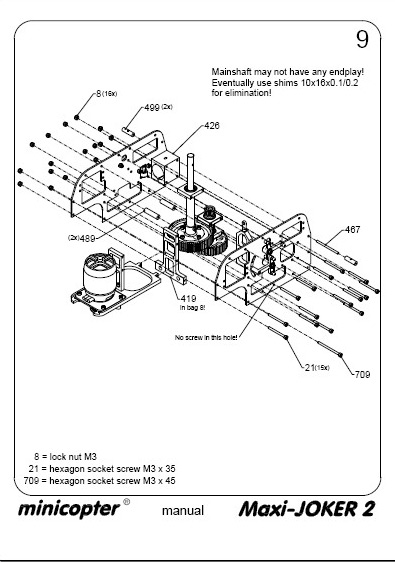

For drawing 9 start
with placing the gear assembly on one side. Either
part 411 or 412. I pre-assembled the whole unit
before tightening the screws. |
|
| |
|
|
 |
|

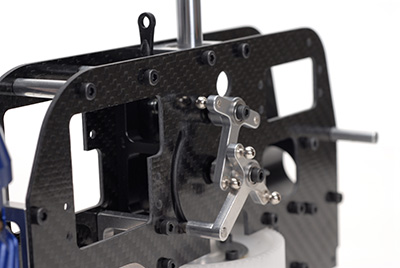

Make sure the
elevator, aileron and pitch bellcranks move smoothly. |
|
| |
|
|
 |
|
| |
|
|
 |
|

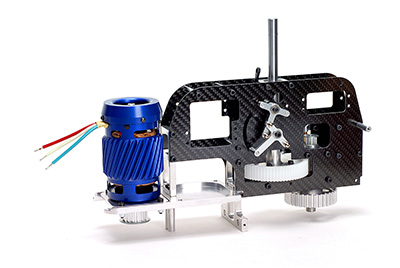

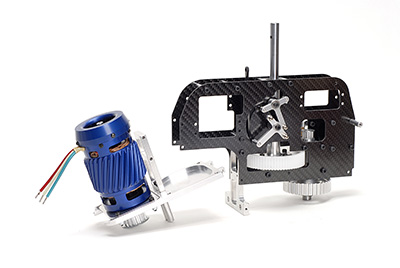

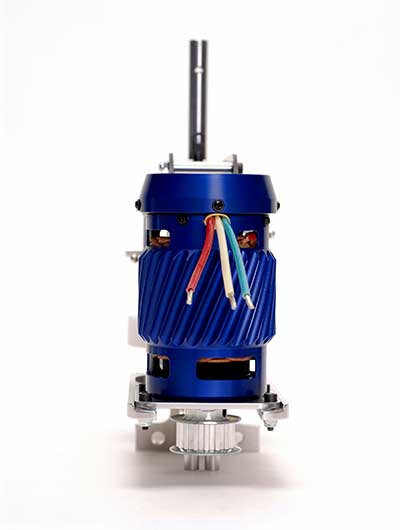

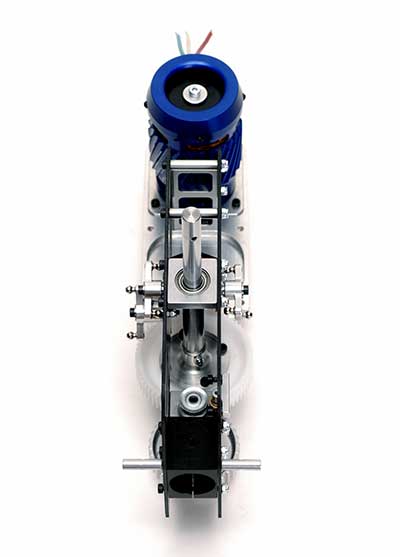

I installed the motor
assembly last. |
|
| |
|
|
 |
|
Check for smooth
movement of the swash plate control arm with the pushrod
through the curved hole.. |
|
| |
|
|
 |
|
| |
|
|
 |
|
| |
|
|
 |
|
| |
|
 |
|

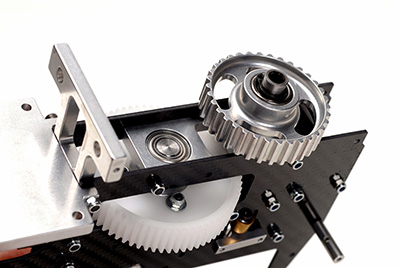

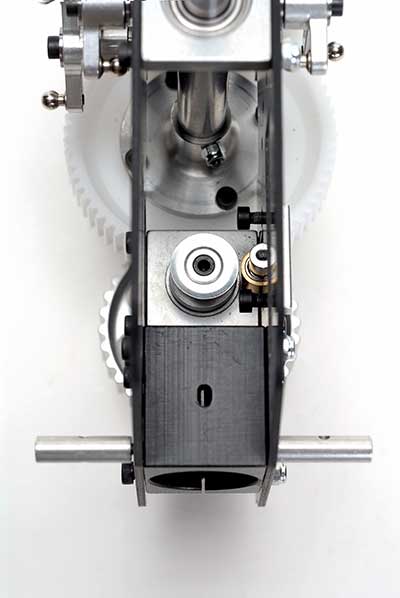

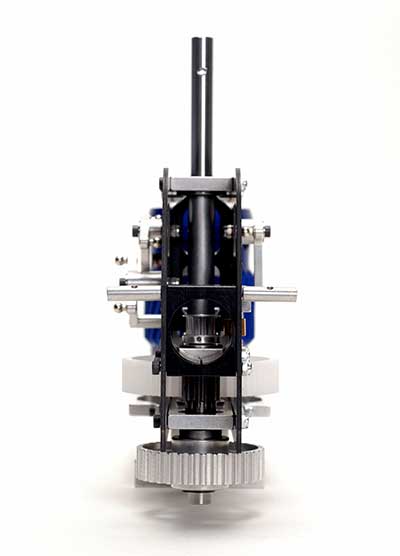

Body boom support
block (#426) and tail rotor belt gear wheel (14 teeth,
#216) and roller carrier (#778). |
|
| |
|
|
 |
|
| |
|
