Throttle Curve
- If this will be installed on a helicopter that has
already been flown then there is no need to adjust the
throttle curves.
Tail Servo & Gyro
- There are two options for setting up the tail.
1 - "Face Home"
feature which requires the use of the internal gyro.
The Face Home feature is great for flying back to "base"
if the heli has been flown to a distance. Toggle
the switch and the helicopter will turn around.
Add forward cyclic.
The Face Home feature
can also be combined in Failsafe mode. Forward
cyclic can be added in failsafe therefore the helicopter
will "Fly Home". Once the helicopter is over its
"start point" then the helicopter will circle above.
2 - "Jumper
Mode" feature is a safety feature to bypass the
Profi system. If the Profi system were to fail
then the pilot will still have control of the
helicopter. This requires the use of an
external gyro. More below...

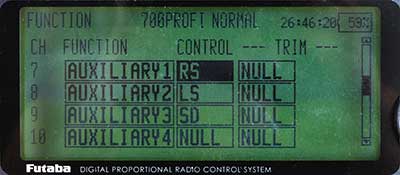

Pilot Channel
- The Pilot channel controls the stabilization modes,
horizontal and positional, and their gain levels via a
slider or switch. For this review I assigned the
pilot channel to the right slider.
H Pilot
Channel - The H Pilot channel controls the altitude
stabilization modes, hold and damping, and their gain
levels via a slider or switch. For this review I
assigned the pilot channel to the left slider.
Autotrim
Channel - The Autotrim channel is recommended to be
assigned to a momentary switch or a push button type
switch. A two or three position switch can be used
as well. For this review I assigned it to a three
position switch.
Failsafe - The
following are suggestions from CAPTRON.
|
Channel |
Simple |
Hover |
Descending |
Internal FS |
|
Elev, Aile, Rudd |
Neutral |
Neutral |
Neutral |
Neutral |
|
Pilot |
Tested Pos. mode value |
Tested Pos. mode value |
Tested Pos. mode value |
+70% (Pos. Mode) |
|
H Pilot |
Tested desired value |
Holding mode, tested value |
Damping mode, tested value |
According to PC menu 'altitude' |
|
Coll. Pitch |
Hold (last value) |
Hover Position |
Slow descnet in damping mode |
Last average value |
|
Throttle |
Hold (last value) |
Hover Position |
Hover Position |
-- |
|
AUX |
Hold (last value) |
If for gyro: Tested HH
value
If for autotrim: OFF |
If for gyro: Tested HH
value
If for autotrim: OFF
|
If for gyro: According to PC
menu gyro
If for autotrim: OFF |
|
