This step can get a bit tricky
depending on the switch you

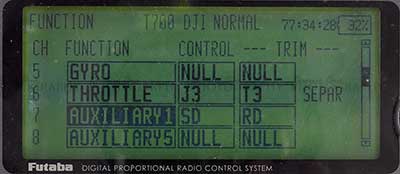

choose. A three position
switch was assigned for the AUTO / Manual mode.
First position is Manual,
second and third positions are
AUTO.
There are three flight modes.

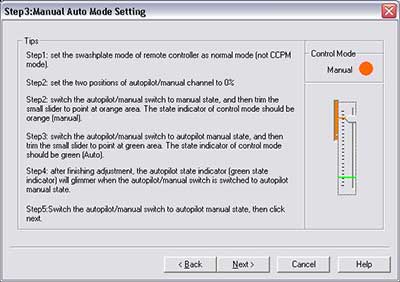

Switching between flights modes changed the location of the
slider. Therefore

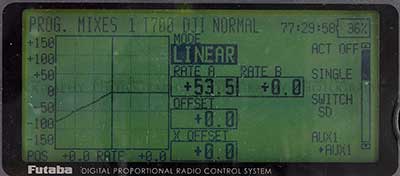

different
curves were set for each flight
mode.
As mentioned on the manual, on a
Futaba radio, End Point was used
to correctly set the sliders.
Then a small amount of sub-trim
was necessary to reach the
correct AUTO setting.

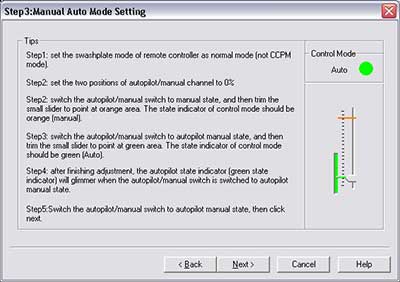

When switching to auto mode
the green light should
flash once per second. |
