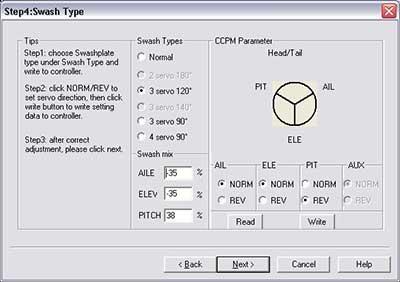

Strictly follow the swash diagram as shown.  It doesn't matter how other helicopter manufacturers have assigned their servos.

For example, for 120° swash, the Aileron servo (top right) must be plugged into the AIL port of the adapter.

NOTE:

- No servos should be reversed on the transmitter.

- Use the software to reverse any servo.

- Adjust the "Swash Mix" fields to avoid any binding.

- After the Wizard is complete  any of these settings may be adjusted on the main window.

- Don't forget to "write" and "save".
