Software Configuration - Altitude

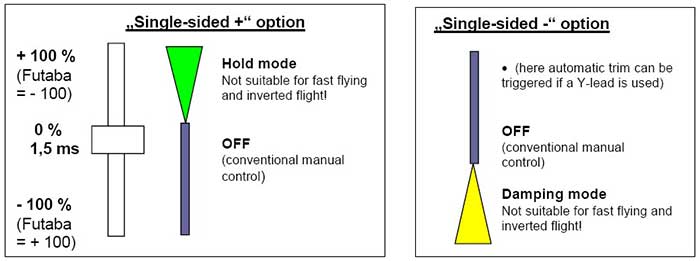

- Image from the manual

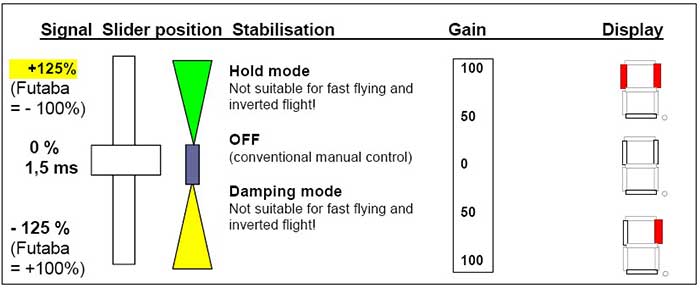

For the H-Pilot channel I assigned my left slider.  Again, check with the diagnose tab to make sure the light assignment is is working according to your setup.

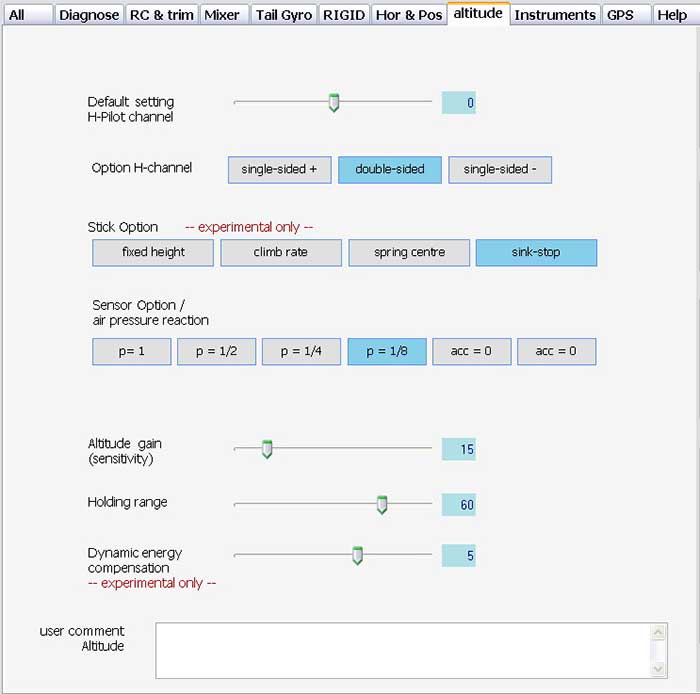

- Image from the manual



Alternatively you can opt for either damping mode or hold mode.







Default Setting H-Pilot Channel - Set either damping or hold mode as default if H-Pilot is not used.



Option H-Channel - Sets the H-Pilot's option availability.



Stick Option - Options for H-Pilot HOLD mode.

Fixed Height - Autopilot will function against stick  action.

Climb Rate - Allows hover point out of stick center.

Spring Centre - Climb or descent will halt on stick release.

Sink - Stop - Similar to Spring Center with the addition of descent speed reduction when altitude is below 2m.



Sensor Option / Air Pressure Reaction - Defines air pressure reaction speed.



Attitude Gain (Sensitivity) - Defines altitude gain sensitivity.



Holding Range - Defines the altitude interval inside of which a given altitude will be maintained or re-gained after altitude deviations are caused by  wind gusts.



Dynamic Energy Compensation - Anticipates the required collective pitch changes to avoid diving or ballooning up when accelerating or decelerating against the airflow.
