Software Configuration - Swashplate
NOTE: Swash Type should have been determined during installation of the main controller.
As a sample:
Trex700: HR3
MaxiJoker2/3: H3.

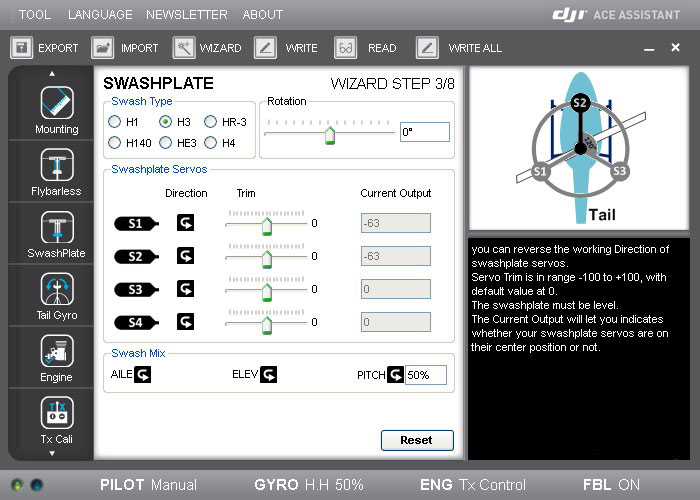

Leveling the swash plate
The swashplate can be leveled mechanically or with the Trim sliders. My swash is leveled mechanically.
Here it is again for reference purposes.
Image from manual
Description
H1, H3, HR-3, H140, HE3, H4
Use the image above to determine the correct swash to select for your specific helicopter model.
The swash can be rotated at 1° increment if necessary.
S1, S2, S3, S4
Use the Direction button to reverse the servos.
Trim the servos to level the swashplate.
AILE, ELEV, PITCH
Since ACE ONE does the CCPM mixing swash mix is not available on your transmitter.
If you have enabled Flybarless then Swash Mix will not be available as well.
DJI recommend values between 35%-45% for soft flying characteristics.

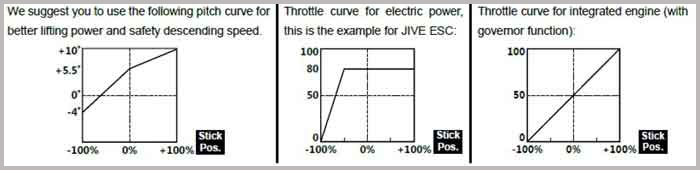

DJI recommends the following pitch and throttle curves.
Note: DJI's suggested pitch and throttle curves will vary with each user.
DJI's sample throttle curve for electric helicopters is for NORMAL flight mode.
